REX® C&S Grit Collector

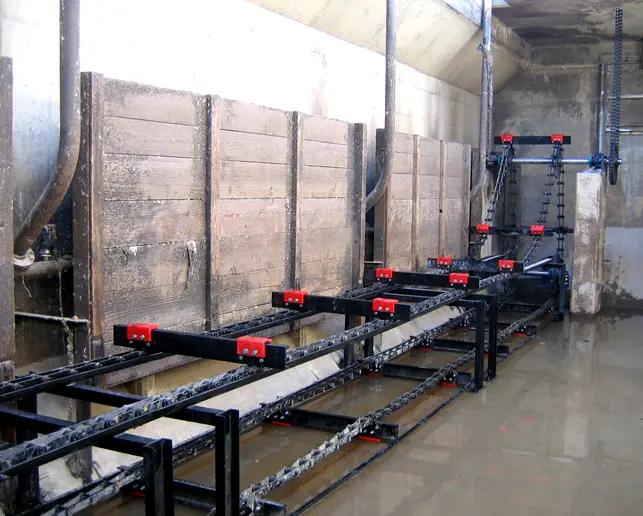

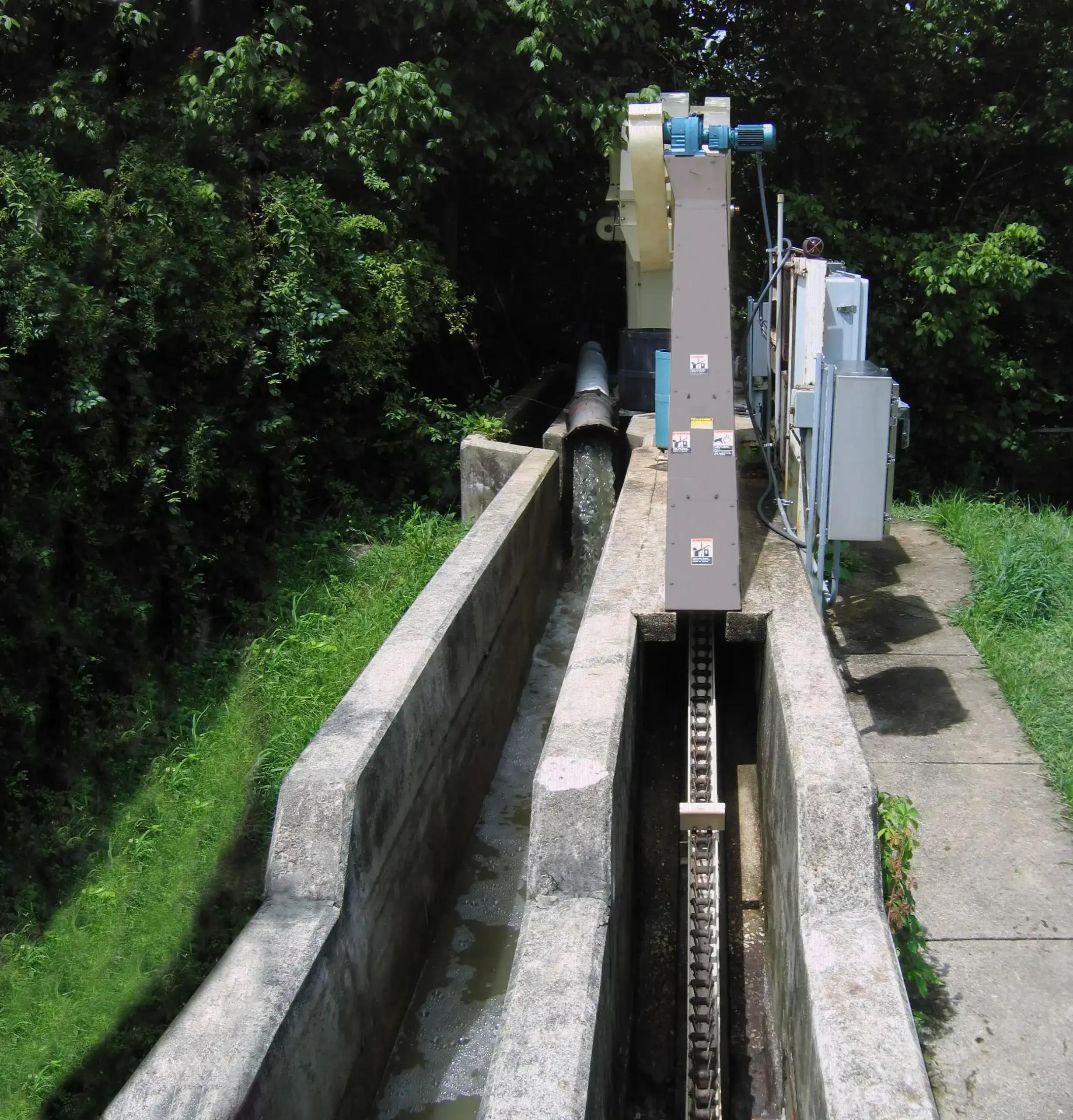

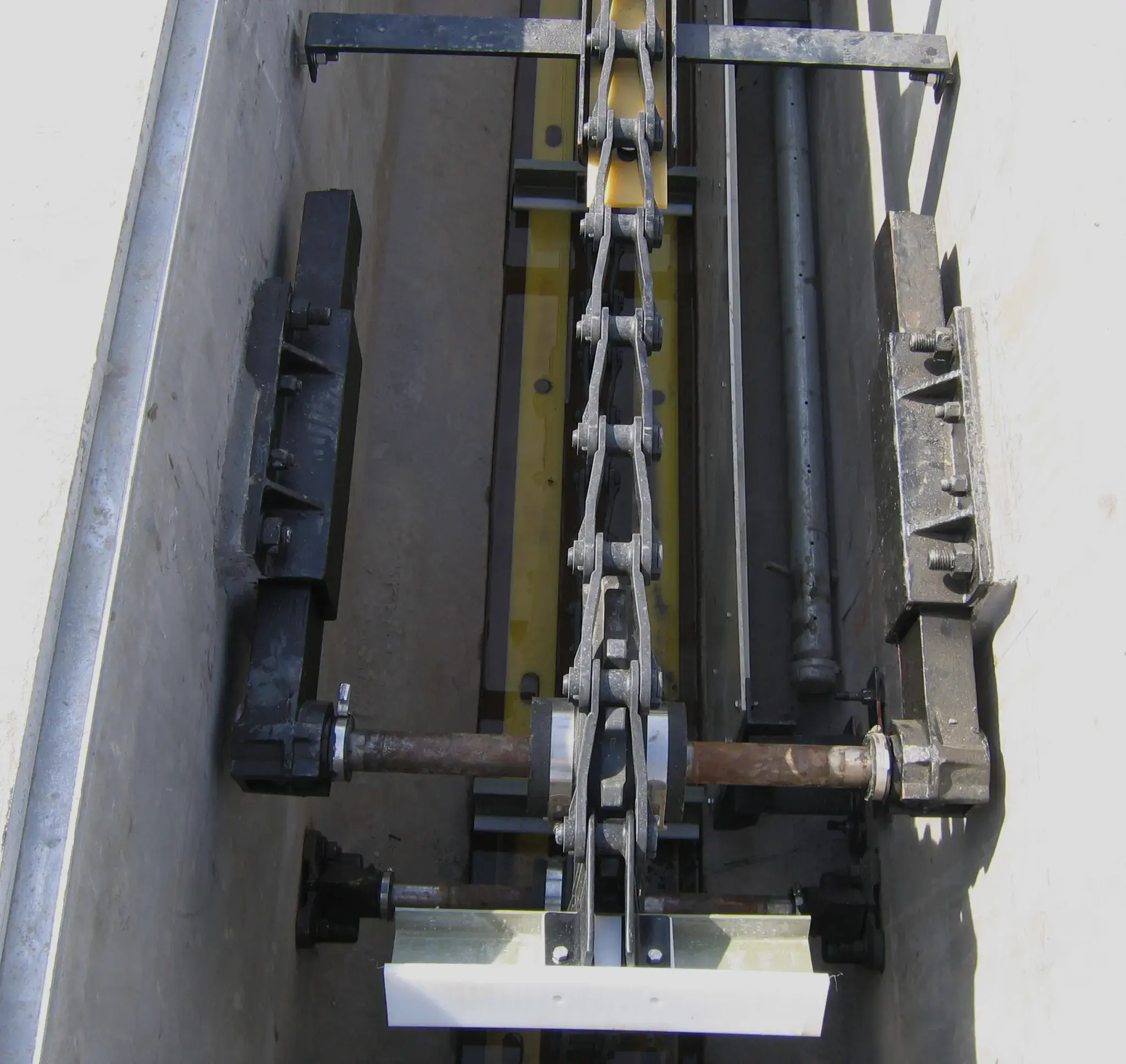

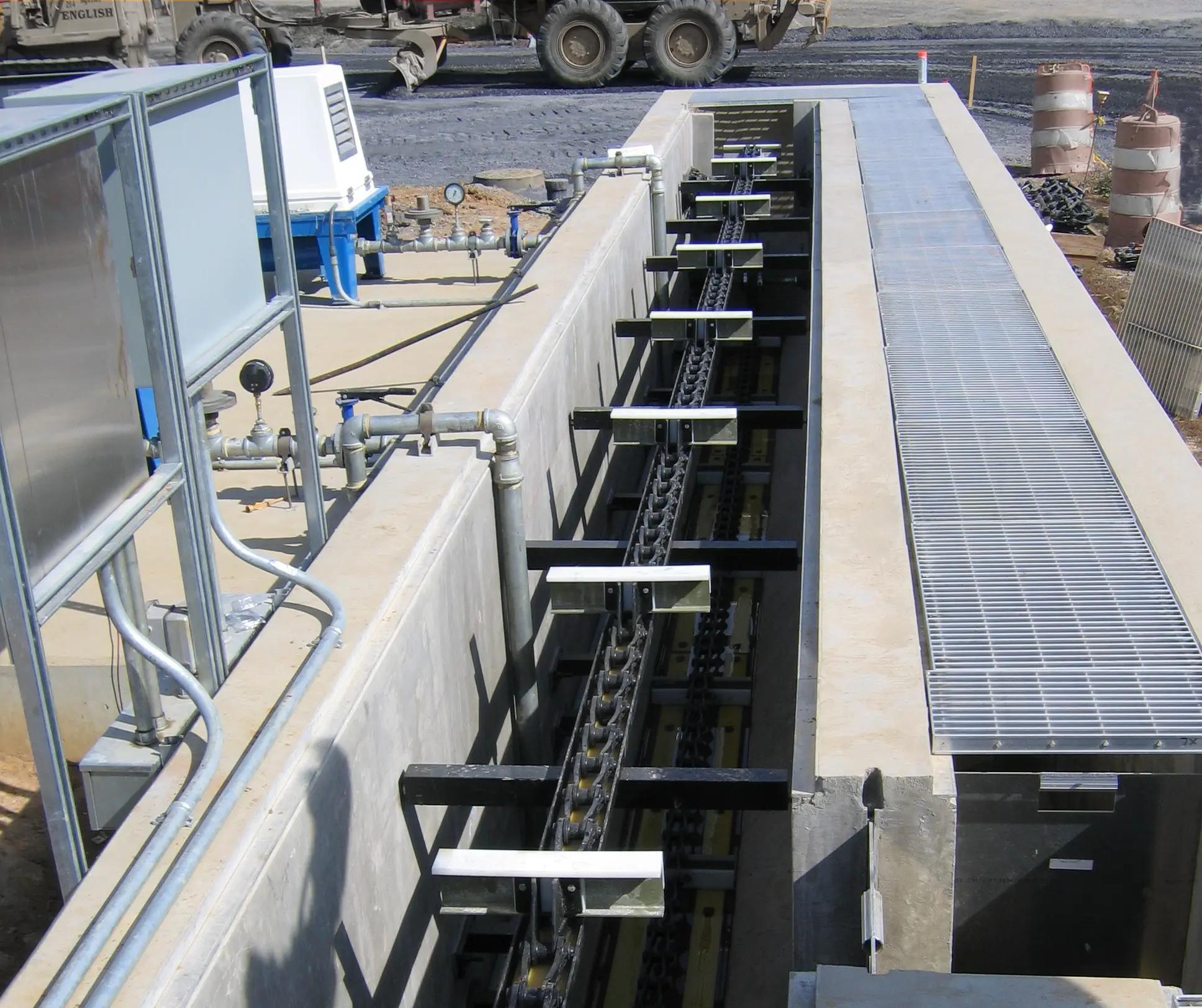

The REX® Chain & Scraper Grit Collector can be used in treatment plants with flows up to 5 MGD and shallow depths up to 5′-0″. A suitably clean grit is obtainable by proper velocity control in the grit chamber and by grit recirculation if desired. Grit is removed by scrapers attached to a chain which moves across the chamber bottom and then up an incline where the grit is then deposited into a receptacle.
The C&S Grit Collector can also be designed with the Gritreat System for grit chamber aeration. The REX® Gritreat assures positive flow control for predictable grit quantity and quality.
Features
- Carbon Steel or Stainless Steel fabrication
- Automatic operation and overload protection
- High strength, wear resistant componentry
- Easily replaceable wear components
- Non-metallic chain, sprocket and flight option available
Applications
- Flows up to 5 MGD
- Tank width: 2′-6″ to 4′-0″
- Tank length: 36′-0″ max
- Tank depth: 5′-0″ max
Markets
- Municipal wastewater
- Industrial wastewater
- Pulp & paper
- Food & beverage
- Metal processing
Parts
WSG & Solutions, Inc., is your exclusive OEM source for REX® C&S Grit Collector aftermarket parts and support. We stock REX® C&S Grit Collector parts to ensure quick delivery and have the expertise and design records to provide rebuilds or retrofits to ensure the long-term operation of your screen.
